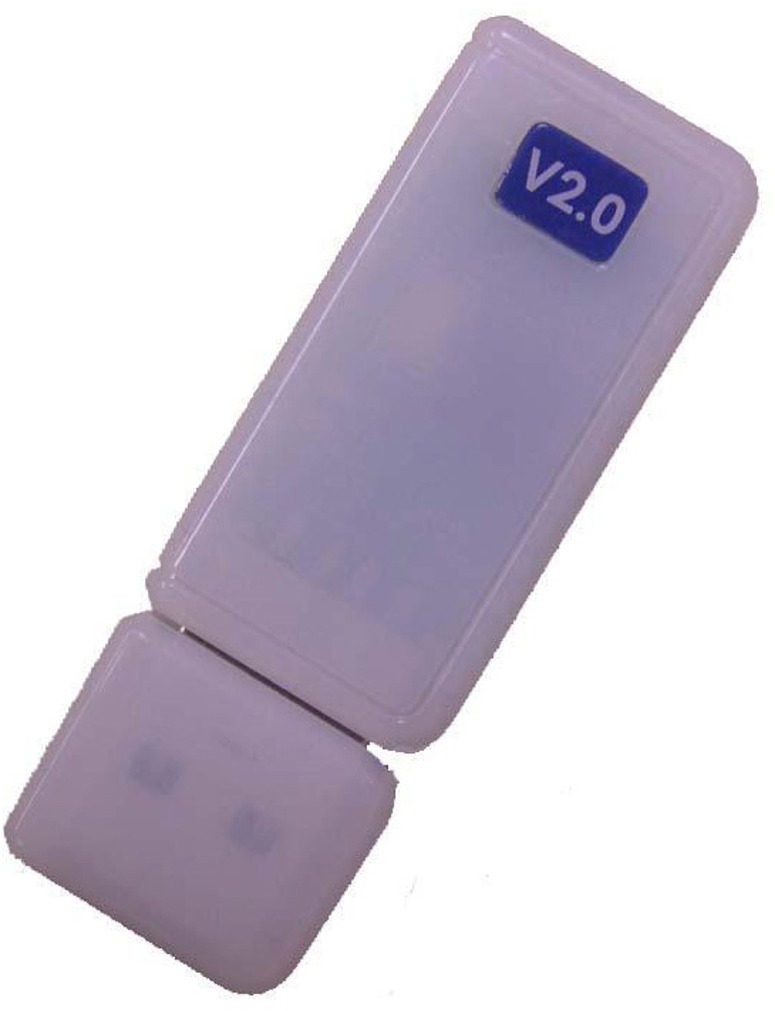

PMR Bluetooth Version 2.0 EDR USB Adapter - Class 2, 10m

PMR Class 1 Bluetooth USB Adapter present a low-cost, effective means for you to connect many bluetooth devices and dramatically enhance communications between partners or equipment at different locations.

PMR Class 1 Bluetooth USB Adapter is highly integraded Bluetooth Adapter, includes Radio, Baseband, link Manager, and Host control interface. Due to its high sensitivity, low power consumption, and low cost, PMR Class 1 Bluetooth USB Adapter is suitable for numerous electronic devices, it can connect with laptops, PCs , printers , PDAs and cellular phones.

Brand: PMR
Part Number:PMR-0333E
Current Ver: 1
Release Date: August 2005
Bluetooth Ver: Version 2.0, 1.2 and 1.1
Specifications:

• Product Name Bluetooth USB Adapter (or Dongle)
• Chipset Broadcom BCM2045
• Certification FCC, CE
• Standard Bluetooth V2.0
• Frequency Band 2.4~2.4835GHz unlicensed ISM band
• Modulation Method GFSK, 1Mbps, 0.5BT Gaussian
• Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
• Transfer rates (Max) Max UART baud rates of 3Mbps
• RF Output Power Class 2
• Working distance Greater than 10m in free space
• Sensitivity <-82dBm at < 0.1% BER
• Antenna Ceramic Antenna
• Input power DC 5V (via USB Port)
• I/O Interface USB
• LED indicator Power / Active

• Services supported:
  • Serial Port, Dial Up Networking, Fax, Headset, PIM Item Transfer
  • PIM Synchronisation, File Transfer, Network Access, Audio Gateway, HID
  • OS Support Windows Win 98SE / Me / 2000 / XP, Mac 10.3.5

• Environment
  • Operation temperature: 0 oC ~ + 60 oC
  • Storage temperature: -10 oC ~ +70 oC
  • Humidity: 5 ~ 90% non-condensing
• Size 49.36 (L) x 17.99(W) x 7.55(H) mm
• Weight 6.3

Documents and Support :

• Data Sheet: (PDF)
• Quick Start Guide (PDF) - See CDROM for all documentation
• Support

Declaration of Conformity. - Available soon, email to request a copy
